Storage
All modular designed product are based on high density architectures, having massive storage capacity. It’s based on Haswell processor, has an enterprise-leveled reliability, availability and manageability features.

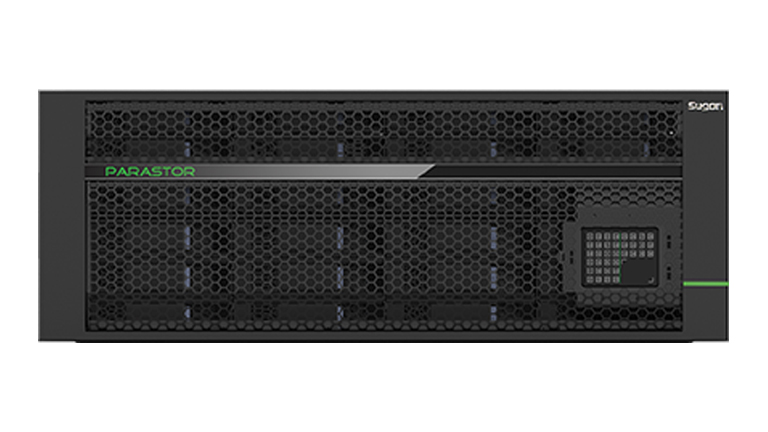

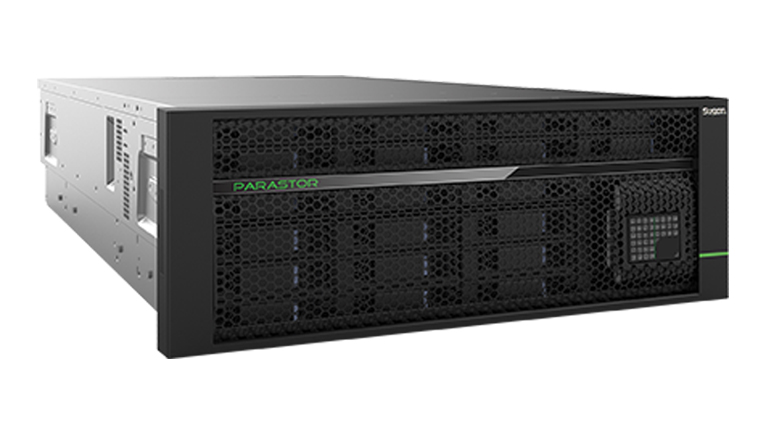

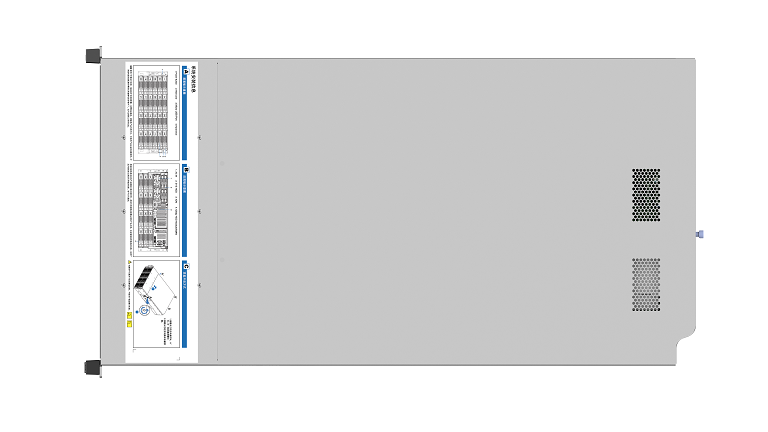

Sugon S640-G30, developed by Sugon based on Intel? Xeon? extensible processor, is a 4U high density two-way storage server. S640-G30 product has storage capacity of high density, and provides powerful computation performance and rich IO extensibility, which can satisfy multiple service demands of data center. S640-G30 products are very suitable for finance, securities, transportation, post, telecommunication, energy, Internet, etc., which are demanding in storage capacity, server performance, extensibility, and reliability.
Improved performance brought by brand new processor architecture
High density architecture, mass storage capacity
Strong I/O extension ability
Technical Specification
| Processor | Support Intel? Xeon? extensible processor, high speed UPI interconnect bus (10.4/9.6 GT/s, depending on CPU type), large capacity three-level buffer | ||
| Memory | 16 memory slots Support memory of DDR4 2666/2400/2133 ECC (working frequency depends on CPU and memory configuration) Can be extended up to 2TB Support RDIMM, LRDIMM, NVDIMM and NVDIMM-N | ||
| Network | Onboard integrated gigabit two-port RJ45, optional 10 gigabit two-port RJ45, gigabit 4-port RJ45, 10 gigabit two-port optical fiber and many network interfaces. | ||
| PCIe extension | Support maximum 6 PCIe extension slots（including 2 dedicated PCIe slots） | ||
| Storage Controller | Integrated 12-port SATA hard disk controller Flexible configuration SASHBA, support RAID0/1/10 SAS RAID, support RAID 0/1/5/6/50/60 Support Cache super capacitance protection, provide RAID state migration, RAID configure memory and other functions | ||
| Hard Disk Scheme | 24-plate model: Support maximum 24 LFF/SFF 36-plate model: Support maximum 36 LFF/SFF 24/36 -plate model: Support SAS/SATA mixed insertion of hard disks, support optional 2 rear SFF，support 1 M.2 SSD，support PCIe SSD； | ||

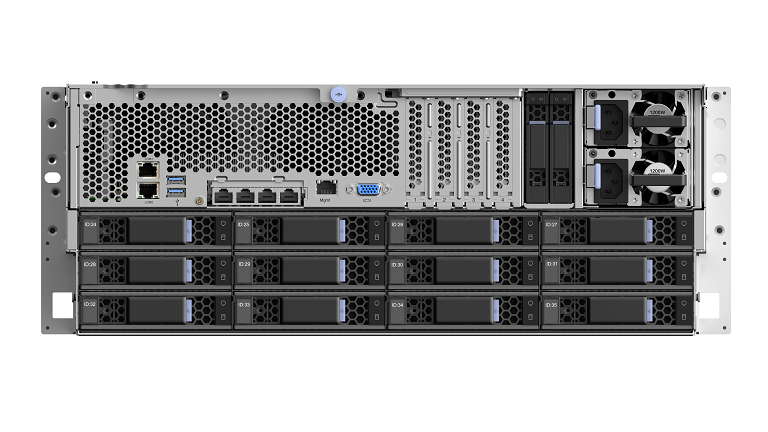

| Other interfaces | 1 RJ-45 management interface, at the rear of chassis 2 USB 3.0 interface, at the rear of chassis; 1 Micro USB at the front of chassis 1 VGA interface, at the rear of chassis Optional 1 serial port, at the rear of chassis 1 SD card slot, at the rear of chassis | ||
| Power Supply | 1200W CRPS efficient platinum power, 1+1 redundant； | ||
| Heat Dissipation | Redundant fan modules | ||
| Management Function | Integrated BMC chip, support IPMI2.0, SOL, KVM Over IP, virtual media and other advanced management function, provide 1 management port of 1Gbps RJ45 to external, support NCSI | ||
| CD-ROM | Support USB DVD-RW | ||
| Video Card | Integrated display controller, maximum resolution 1920x1080 | ||
| OS Support | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.X 64bit RHEL 7.X 64bit SLES 12 SPx 64bit Ubuntu 15.10 64bit VMware ESXi 6.0 Operating system support is subject to change without prior notice. | ||
| Chassis | 4U rack-mounted server chassis | ||
| Chassis Size | 886mm（depth）×432mm（width）×176mm(height) | ||
| Weight | 24-plate: max. 50 kg 36-plate: max. 70 kg | ||
| Working Temperature | 5℃～35℃(41℉～95℉) in work -40℃～70℃(-40℉～158℉) in storage | ||
| Working Humidity | Max. 90％RH（40℃）in work 35％～80％ RH in work 20％～93％ RH in transportation and storage | ||
| vibration | Frequency 5Hz～500Hz, acceleration≤20m/s2 , amplitude≤0.15mm | ||
| shock | Peak acceleration 150m/s2～300m/s2, duration≤11ms | ||
| Collision | Peak acceleration 100m/s2～150m/s2, within 1000 times | ||
