X86 Server
Adopt modular design, flexible configuration, with a mix of features to maximize performance, scale to meet future demands and adapt to virtually any workload with an optimum balance of compute and memory.
A320-G30 is a high performance 1-way server developed by Sugon based on AMD latest Naples processor platform. Based on independently development, A320-G30 supports one AMD EPYC series processor, with the features like powerful performance, lower power consumption and great scalability. A320-G30 is a perfect replacement of low-end application requirements of 2-way servers and meets the requirements of SMB such as virtualization, industry analysis and cold storage.
Memory hardware encryption in SME-CPU architecture VM memory encryption in SVE-virtualization architecture
Stable operating in 5-40℃ PID fine variable speeding Precise component status and temperature monitoring
Platinum high efficiency power module Server-level power consumption display and capping technology Component power consumption monitoring technology
Technical Specification
| Processor | Supports AMD EPYC series multi-core processors, high capacity L3 cache (16/32/48/64MB, depends on CPU model). | ||
| Memory | 16 DIMM slots Supports DDR4 2666/2400/2133 ECC memory (running frequency depends on CPU and memory configuration) Up to 2TB memory Supports RDIMM, LRDIMM, NVDIMM | ||
| Network Interface | Supports dual-port 1Gb RJ45, dual-port 10Gb RJ45, dual-port 10Gb SFP+, dual-port 25Gb/40Gb QSFP+, etc. | ||
| PCIe Expansion | Up to 6 PCIe expansion slots (including 2 dedicated PCIe slots) | ||
| Storage Interface | Onboard 24-port SATA controller SAS controller，supports RAID0/1/10 SAS RAID controller，supports RAID 0/1/5/6/50/60 Supports cache supercapacitor protection, provides RAID level migration, RAID configuration memory etc. functions | ||
| Disk Storage Solution | Up to 12 front-end LFF/SFF, including up to 6 NVMe SSD, supports up to 2 back-end SFF Supports SAS/SATA mixed solution Supports 1 M.2 SSD and PCIe SSD 1 internal SD card | ||

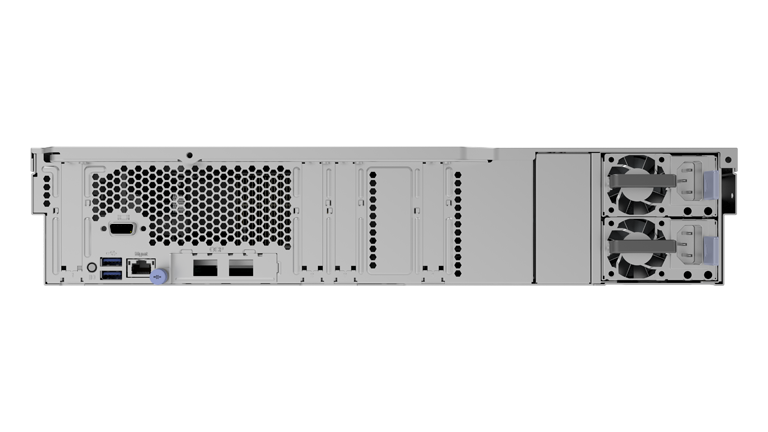

| Other Ports | 1*RJ-45 management interface, located in the rear of chassis 2*USB 3.0 interface located in the rear of chassis and 2*USB 2.0 interface in front of chassis 2*VGA interface, 1 located in the rear of chassis and 1 located in the front of chassis 1*SD card slots, located in the chassis | ||
| Power | Optional 550W or 1200W CRPS Platinum Power, up to 1+1 redundancy； | ||
| Cooling | 3 fan modules | ||
| Management Function | Integrated BMC chip, supports IPMI2.0, SOL, KVM Over IP and virtual media advanced management function; provides 1*1Gb RJ45 management port, supports NCSI function. | ||
| CD-ROM | Optional USB DVD-RW | ||
| Video Card | Integrate display controller，512MB video memory, maximum resolution factor:1920*1080 | ||
| Supported Operating Systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.9 64bits or higher SLES 11SP4 64bit or higher Ubuntu 16.04 64bit or higher VMware ESXi 6.5 In case of any change with supporting status of operating systems, it shall not be notified separately. | ||
| Certification | CCC certification passed | ||
| Power Voltage | 200-240V/50Hz | ||
| Chassis | 2U rack-mount server chassis | ||
| Chassis Dimension | 87.8mm(H)x 448mm(W)x730mm(D) 87.8mm(H)x480(including the hanger) mm(W) x 730mm(D) | ||
| Weight | Maximum 35kg (excluding the rail) | ||
| Ambient Temperature Requirement | Operating 5℃～40℃(41℉～104℉) Storage -40℃～70℃(-40℉～158℉) | ||
| Relative Humidity Requirement | Operating: Maximum 90%RH (40°C) Operating: 35%~80% RH Transportation/Storage: 20%~93% RH | ||
| Vibration | Frequency 5Hz~500Hz; acceleration ≤20m/s2; amplitude ≤0.15mm | ||
| Shock | Peak acceleration 150m/s2~300m/s2; duration ≤11ms | ||
| Collision | Peak acceleration 100m/s2~150m/s2; within 1000 times | ||
